DESCRIPTION

Basic Info.

Model NO.	JG-85S
Size	Small-Scale
Certification	ISO9001: 2000
Condition	New
Capacity of The Fuel Tank	158L
Transport Package	Nude Packing
Specification	6350*2100*3000mm
Trademark	JingGong
Origin	China
HS Code	8429521100
Production Capacity	3000sets/Year

Product Description

QUANZHOU JINGLI ENGINEERING MACHINERY CO. LTD.
jg-excavator.en.made-in-china.com

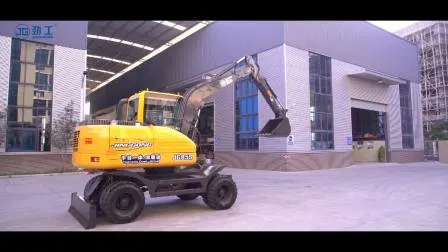

JG85S Tiptronic Dual-drive wheel excavator
Equipped with two sets of gearboxes, their respective transmission ratios and drive operation modes are different, and different transmission modes can be selected in different driving environments.During operation, automatic gear (hydraulic motor drive gearbox) can be used for operation. The driving speed of the whole vehicle is 0-8 kilometers per hour, because it is hydraulic stepless speed change, which can reduce the intensity of operation.

In the transition and climbing, manual gear (mechanical gearbox) can be selected to improve driving speed and climbing ability. The speed of the whole machine using a manual transmission is 0-28 kilometers per hour, which can adapt to different working environments.

The application of mechanical and hydraulic dual drives effectively solves the applicability of the wheeled excavator in various occasions, greatly improves the work efficiency, and reduces the operating intensity. It is the latest innovation to promote the ability of the wheeled excavator to adapt to the market.

SPECIFICATIONS
RANGE OF OPERATION			Boom length				3475mm
			Arm length				2000mm
			Maximum Digging Reach				6500mm
			Maximum Digging Depth				3250mm
			Maximum Digging Force				45KN
			Maximum Digging Height				7100mm
			Maximum Dumping Height				4850mm
			Back-end radius of gyration				1970mm
DIMENSION			(Length*width*height) travel position				6350*2100*3000mm
			Wheel base				2400mm
			Track(Front/rear)				1660mm/1580mm
			Ground clearance of counterweight				1060mm
			Min ground clearance				350mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				7000kg
			Engine model				YUCHAI 4FA65
			Rated Power				48KW
			Rated Speed				2200r/min
			Hydraulic system working pressure				21Mpa
			Hydraulic system flow				140L/min
			Metering gear pump				65ml/r
			Max Hauling force				45KN
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				825.16
			Volume Of Bucket				0.2-0.3m³
			Revolution Overdrive Pressure				20Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥4L/h
			Capacity Of The Fuel Tank				158L
			Hydraulic Tank Capacity				158L

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
